PRECISION TOOL MAKER VISE-1

Add to Enquiry Bag

Enquire Now

Features

  • CHARACTERISTICS
  • Manufactured from Tool Steel Hardened 55-60 HRC., and high precision ground. Screw type vise for clamping, releasing is through threaded spindle with precision cut square threads for smooth operation. Vise jaw movement is on dovetail slide for rigidity. Bottom of vise can be used as a long precision Vee block. This vise has multi uses.

Need Expert Advice
-Call us-

+ 91 11 43118888

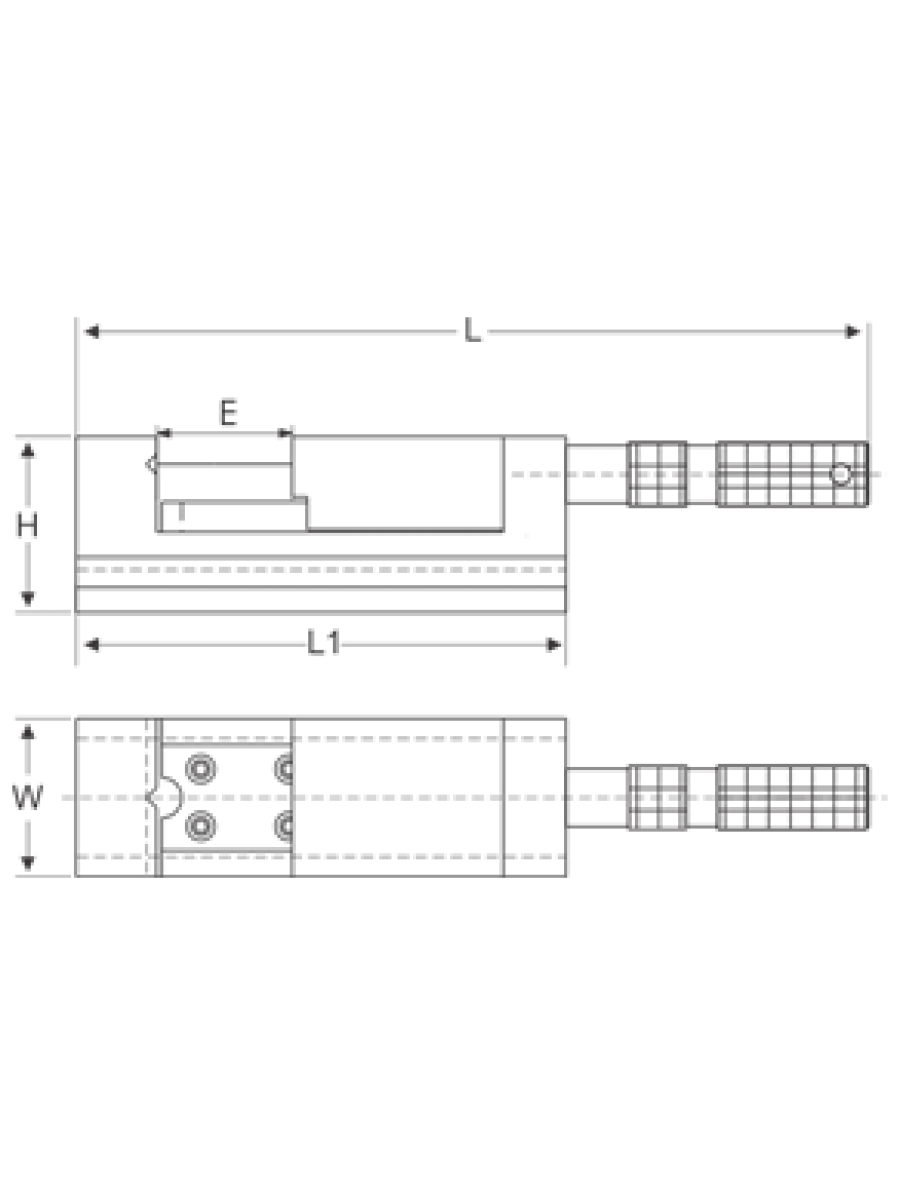

Technical Data

Ordering No. Length Width Height Jaw Width Jaw Opening Jaw Depth Base Length Net Weight
Kgs.
Inch mm Inch mm Inch mm Inch mm Inch mm Inch mm Inch mm
110125 12.1/2 315 2.1/2 63 2.3/4 70 2.1/2 63 2.1/8 55 1 25 7.5/8 195 5.00
