SOBA

Add to Enquiry Bag

CHARACTERISTICS

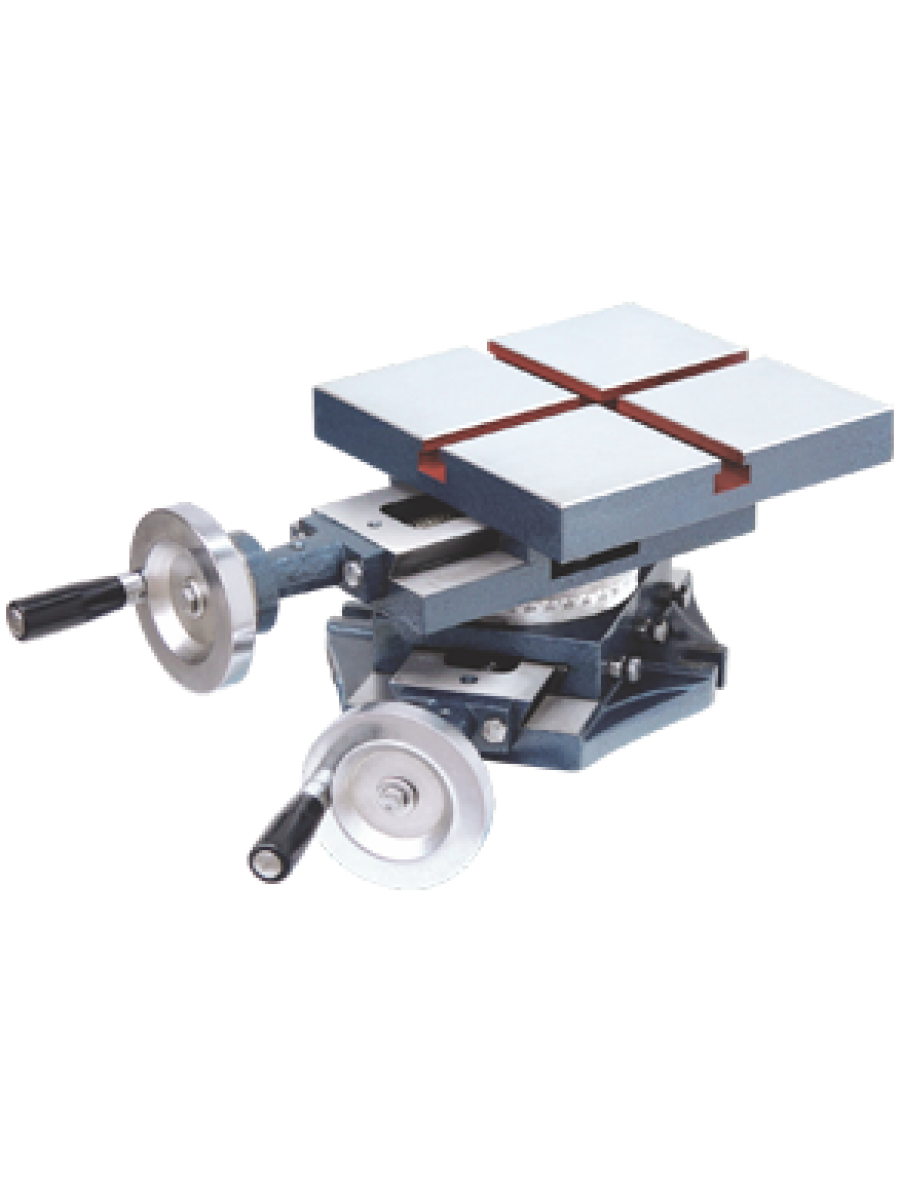

Produced from Close grained Cast iron with the castings stress relived. All SOBA cross slide tables have tops precision ground to an accuracy of 0.001â€ (0.025mm ) Total indicator reading dials are graduated in 0.001â€ increments with a wheel handle at the ends of the table top, positioning may be performed from either side.

Ordering No.	Size of Tables		Height		Cross Sliding		Longitudinal sliding		T Slot Sizes		Wheel CalibrationÂ°		Net Weight Kgs.
Ordering No.	Inch	mm	Inch	mm	Inch	mm	Inch	mm	Inch	mm	Inch	Degree	Net Weight Kgs.
110340	6 x 6	150 x 150	5.1/8	130	5	125	5	125	1/2	12	.001	90	14.00
110345	8 x 8	200 x 200	6	150	5	125	5	125	1/2	12	.001	90	20.00
110350	6 x 12	150 x 300	6	150	8	200	8	200	1/2	12	.001	90	33.00
110355	8 x 12	200 x 300	6	150	8	200	8	200	1/2	12	.001	90	35.00
110360	12 x 12	300 x 300	6	150	8	200	8	200	1/2	12	.001	90	40.00
